Avtech AVZ592 2MP 20X PTZ Camera Price In Bangladesh

AVZ592

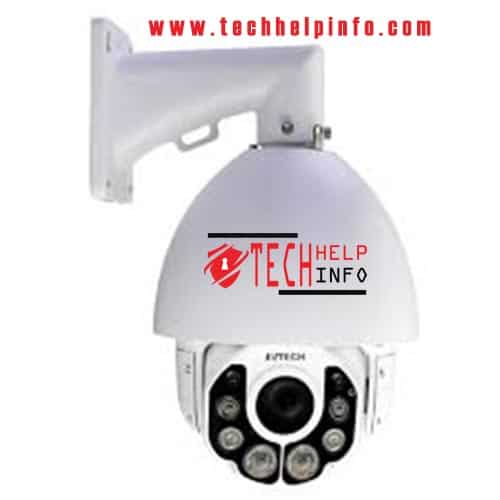

Avtech AVZ592 Tribrid 2MP 20X Speed Dome Camera


Key Features
  • MicroSD card support (up to 64GB) for video storage
  • Line in/out jacks available for audio transmission
  • IR effective range up to 200 meters or
  • more when the IR Turbo mode is on
  • IP66 for outdoor application
  • Remote Surveillance
  • Fully compatible with iOS and Android devices, and Internet
  • Explorer on Windows operating system
  • Free PC program, CMS Lite, for 32CH
Call For Price

Avtech AVZ592 Datasheet Specification & Price In BD

Bitrate ControlSVBR control (VBR + Max bitrate)

Network
LAN Port YES
LAN Speed 10/100 Based-T Ethernet
Data Transmission Speed 10/100/1000 Based-T
Supported Protocols DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP,ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP,IPv4, Bonjour,UPnP, DNS,UDP,IGMP, QoS, IEEE802.1X, SNMP
ONVIF Compatible YES (Profile S)
Number of Online Users 10
Security (1) Multiple user access levels with password (2) IP address filtering (3) Digest authentication
Remote Access (1) Internet Explorer on Windows operating system (2) CMS Lite, 32CH CMS software for Windows operating system (3) EagleEyes on iOS & Android mobile devices
Video
Video Output IP, TVI*,AHD* and CVBS
Compression Format H.264 (Main Profile) / MJPEG
Video Resolution 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240
Frame Rate 30/25 IPS
Multiple Video Streaming 4 (H.264, MJPEG)
General
Image Sensor 1/2.8" SONY CMOS image sensor
Min Illumination 0.1 Lux / F1.6(Wide)~F3.5(Tele), 0 Lux (IR LED ON)
Shutter Speed 1 / 60 (1/50) to 1 / 100,000 sec.
S/N Ratio More than 48dB (AGC off)
Lens f4.7 ~ 94mm / F1.6 (Wide) ~ 3.5(Tele), autofocus
Viewing Angle 1X: 60.8° (Horizontal) / 35.3° (Vertical) / 68.3° (Diagonal) 20X: 3.4° (Horizontal) / 1.9° (Vertical) / 3.8° (Diagonal)
IR LED 8 Units
IR Effective Distance** Default: Up to 200 meters / IR Turbo mode: More than 200 meters
IR Shift YES
Smart Light Control YES
White Balance Auto / 2500K / 3200K / 4200K / 5800K / 9500K
AGC YES
IRIS Mode YES
Sharpness YES
WDR YES
POE 802.3at
External Alarm I/O YES (1 input / 1 output)
RAM 20MB
Micro SD Card Slot YES (up to 128GB)
RS-485 YES
IP Rating (weather-proof) IP66
Operating Temperature -25℃ ~ 50℃
Operating Humidity 90 or less relative humidity
Power Source (±10%) AC 24V / DC19V
Current Consumption (±10%) DC19V / 1.3A
Power Consumption (±10%) PoE / PoN: 30.2W; DC Adapter: 25W
Net Weight (kg) 6.9
Audio
Line--in YES (Mono)
Line--Out YES (Mono)
PTZ Mechanism
Pan Range 360° continuous rotation
Max. Pan Speed 90º/
Tilt Range -6° ~ 90°
Max. Tilt Speed 70º/s
Zoom Ratio 20X Optical Zoom / 16X Digital Zoom
Max. Zoom Speed Approx. 3s (Tele ~ Wide)
Preset Points Up to 256 preset points
Sequence Group 1. Up to four groups can be set 2. One group can include up to 16 preset points
Auto Tracking YES
Others
Mobile Surveillance iOS & Android
Event Notification FTP / Email / SMS
Digital Pan / Tilt / Zoom YES
Reset Default YES
Motion Detection YES
RTC (real-time clock) YES
Minimum Web Browsing Requirements Intel Core i3 or higher, or equivalent AMD 2GB RAM AGP graphics card, Direct Draw, 32MB RAM Windows 10, Windows 8, Windows 7, Windows Vista & Windows XP, DirectX 9.0 or later Internet Explorer 7.x or later (Windows Edge not supported)
Optional Peripherals USB Joystick (AVX102)
Certification CE
